Acoustic-CompactBoard^®

Acoustic panels for interior design

Acoustic-CompactBoard^®, the classic design for large-areas, acoustically effective wall and ceiling panels. The construction of acoustically optimized carrier board and micro-perforated surfaces make this product a true all-rounder. The Acoustic-CompactBoard^® can be tailored to your specific needs, both visually and technically adapted to your needs.

Merken

Possible surfaces

Merken

Examples

Wall cladding

Product:
Acoustic-CompactBoard^®

A man in a suit stands contemplatively in a minimalist gallery with white walls and a bench.

Wall cladding

Product:
Acoustic-CompactBoard^®

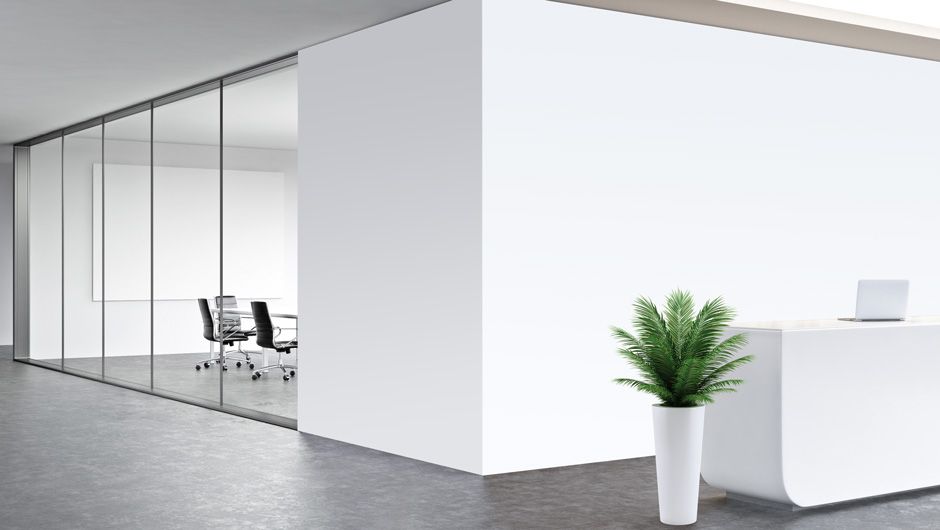

A sleek office space features a glass meeting room and a stylish reception desk with a potted plant.

Properties for perfect acoustics

Material structure

Acoustic-CompactBoard^® consists of an acoustically optimized carrier material which is covered with the desired perforated surfaces.

1. Surface material front side
2. Natural MDF, drilled
3. Black acoustic fleece
4. Surface material back side
5. Edging (veneer, ABS, PP, melamine etc. optional)

A cross-sectional view illustrates the material structure and layers of an acb component design.

Mounting

The Acoustic-CompactBoard^® can be mounted easily and quickly on large wall surfaces, e.g. using attachment profiles. For this purpose, short panel clips are attached to the back of the panels, with which they can be easily hooked into the continuous profiles of the substructure.

A close-up of a wooden post attached to a wall using metal brackets and screws, showcasing structural elements.

Acoustics

Due to the interaction of the acoustically optimized carrier board with the micro-perforated face sheets, the Acoustic-CompactBoard^® ensures pleasant room acoustics.

Graph showing sound absorption coefficients for low, mid, and high frequencies with a rating of αw=0.95.

Technical data

Length (max.)	3000 mm (118.1“ - depending on selected surface material)
Width (max.)	1250 mm (49.2“ - depending on selected surface material)
Thickness	17,5 mm (11/16“)
Weight	approx. 12,5 kg/m² (2.56 lbs/ft² - depending on selected surface material and dimensions)

Other dimensions and constructions on request.

Surfaces

Our products are available in different finishes.
Different surface materials can be combined with different perforations.

HPL / stained / lacquered

A wide range of HPL laminates, melamine surfaces and color lacquering according to RAL or NCS color codes are available for design.

A vibrant color wheel displays a range of hues, ideal for design and painting inspiration.

Wood veneer

Real and natural, that's what makes the charm of wood veneers. In addition to different species of wood, various veneer matching patterns are also available. Please contact us.
