Acoustic-Baffles

Striking lines for fine acoustics

Striking lines for fine acoustics

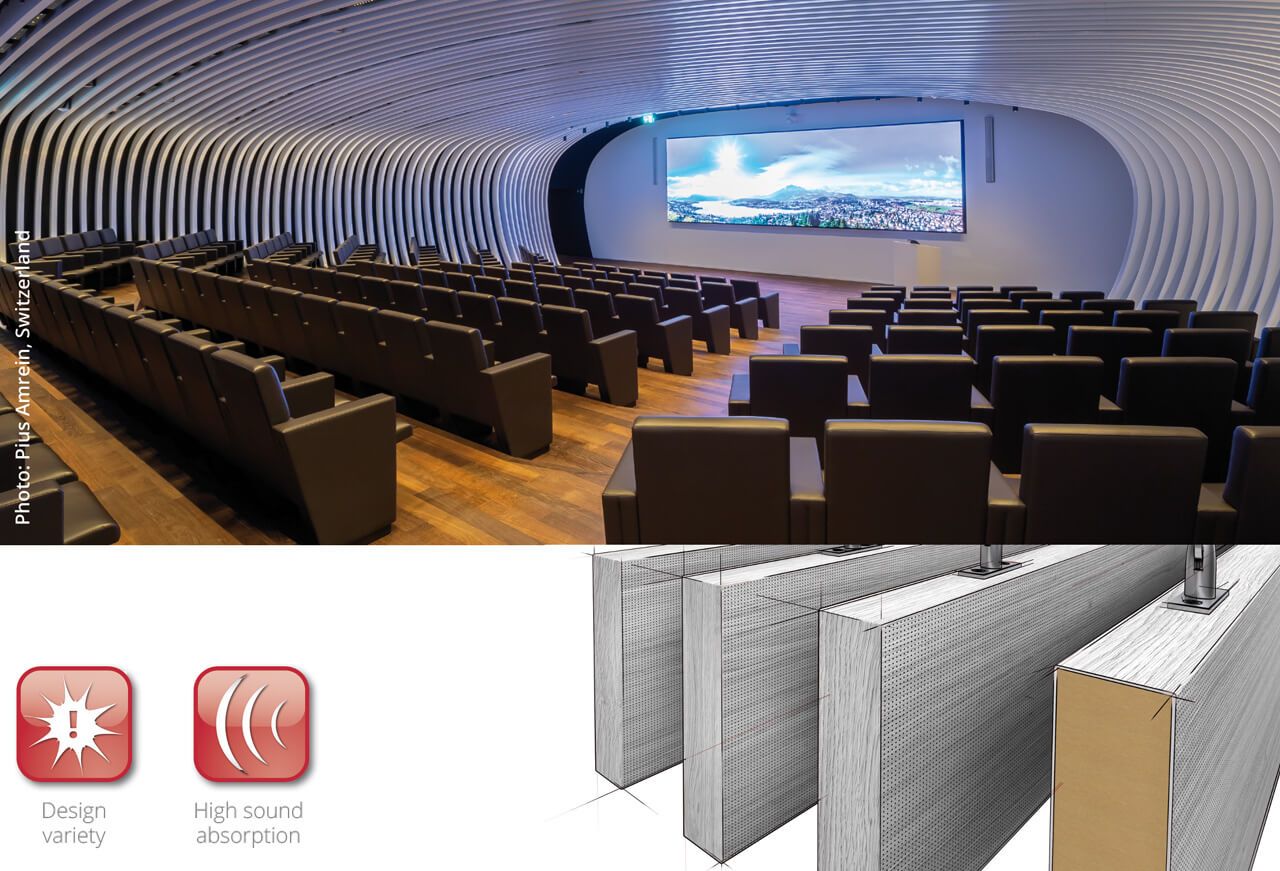

Acoustic-Baffles are vertically suspended acoustic louvers that can be produced individually with different dimensions, surfaces and perforations. The type of installation can be adapted according to your requirements.

Merken

Possible surfaces



Merken

Merken

Examples

Lobby

Product:
Acoustic-Baffles, Oak veneer

Ceiling suspension

Chipboard / MDF version

Material structure

Acoustic-Baffles consist of an acoustically optimized carrier material, with various perforated surfaces.

1. Surface material front side
2. Close-meshed honeycomb structure made of recycled cardboard
3. Wood-based frame (particle board / MDF)
4. Black acoustic fleece
5. Surface material back side
6. Edging (veneer, ABS, PP, melamine etc. options)

Mounting

Acoustic-Baffles can be easily mounted using a variety of fasteners. Among other things, individual installation can be carried out by means of wire suspensions on existing ceilings. In addition to free placement in the room, this mounting variant also allows the suspension heights of the Acoustic-Baffles to be adjusted. Alternatively, grid ceiling profiles can be used for uniform and large-scale Acoustic-Baffles installation.

Acoustics

High spaces with wide ceiling areas offer an ideal starting point for room acoustic optimization with Acoustic Baffles. Incident sound is predominantly absorbed and remaining sound energy is diffusely reflected due to the vertical orientation. The acoustic effectiveness can be influenced by the width and spacing of the baffles.

Technical data

Length (max.) 3000 mm (118 1/8“)
Width (max.) 600 mm (23 5/8“)
Thickness (max.) 50 mm (≈2“)
Weight 10-20 kg/m² (2.05 - 4.10 lbs/sqft - depending on selected surface materials and dimensions)

Other dimensions and constructions on request.

PET Felt version

NEW! The extra light acoustic element

The new baffles impress with their extremely low weight. The recycled PET Felt carrier weighs only 8 kg at a size of 2,500 x 200 x 50 mm.

The material is available in lengths of up to 2,780 mm. Thanks to the Digital Direct Printing process, the surfaces can be individually designed in any decor or colour. The new Acoustic Baffles are the perfect choice for acoustic solutions where low weight is required.

Finish

- PET Felt carrier
- Digital direct decor
- Open front or closed front
- Suspension device
- Extremely light
- Very good absorber
- Length up to 2780 mm
- Variable width and thickness

Technical data

Length (max.) 2780 mm
Width (max.) variabel
Thickness (max.) variabel
Weight ca. 8 kg (bei einer Größe von 2.500 x 200 x 50 mm)

Other dimensions and constructions on request.

Surfaces

Surfaces

Our products are available in different finishes.
Different surface materials can be combined with different perforations.

HPL / stained / lacquered

A wide range of HPL laminates, melamine surfaces and color lacquering according to RAL or NCS color codes are available for design.

Wood veneer

Real and natural, that's what makes the charm of wood veneers. In addition to different species of wood, various veneer matching patterns are also available. Please contact us.

Maple
Cherry
Oak
Walnut
